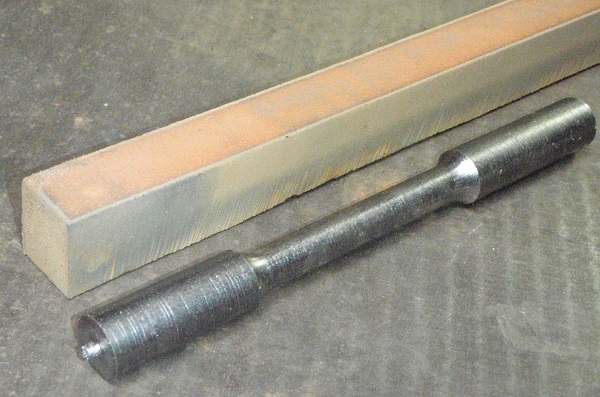

dumbbell sample before and after turning on the lathe

Dumbbell and dog bone coupon samples for tensile and fracture toughness tests on a large old cast iron pipe

Safire are used a lot by scientific and industrial clients for coupons, samples and specimen preparation for testing purposes. With our range of  facilities and our abilities, we are able to combine methods to offer a complete service.
On this project we were approached by the InfroSence Labs at the Imperial College London about a project they were working on in conjunction with Bristol water.

There was a large bore cast iron pipe which burst open and the fault caused a temporary water shortage around Bristol for quite a while effecting many homes and businesses.
Due to the age of the pipes and the severity of the breaks the Infrosence labs at the Imperial College London were brought in to test the old cast iron pipes that were around 100 years old.

cast iron pipe sections as they were dug up from the ground

During the repairs to the water system Bristol water removed various sections of pipe for tests as well as some of the broken pieces.

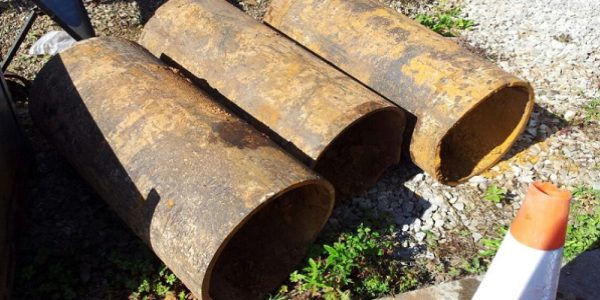

Shown here on the road side are three sections of  14″ diameter pipe that have just been cut out from the main system ready for the next step.

Bristol water pipes ready for waterjet cutting

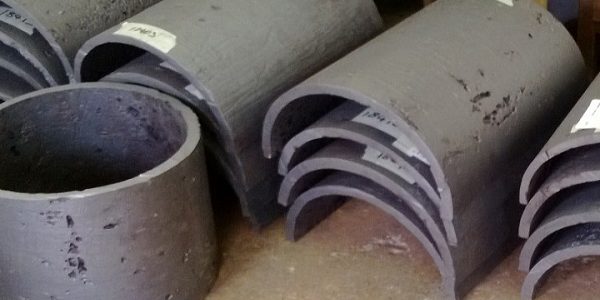

All the sample sections were collected, split into smaller sections and split roughly in half, labeled and grit blasted ready for us to do our work.

cracked section of a cast iron water main pipe ready for waterjet cutting

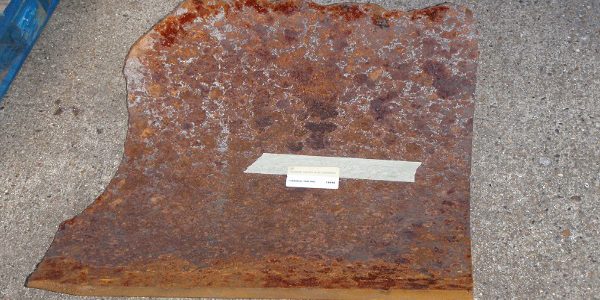

This rusted section is one of the cracked pieces from a 14″ diameter pipe that had burst underground.

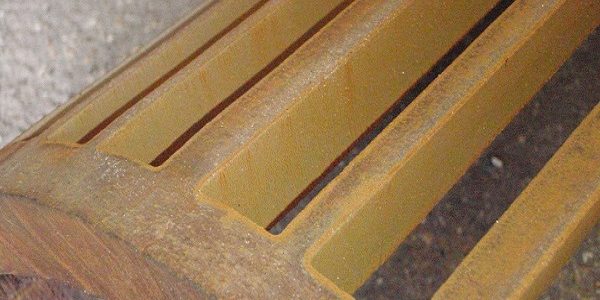

cast iron pipe section with strips waterjet cut from it

We had to plan the job carfully and needed to build some special jigs to hold the pipe sections for the waterjet cutting process.
The pipe sections were big and very heavy but also quite awkward to hold during the  waterjet cutting process.
some pipes had a lot of samples cut from them, this is a close up of a half pipe section that we cut multiple samples from.

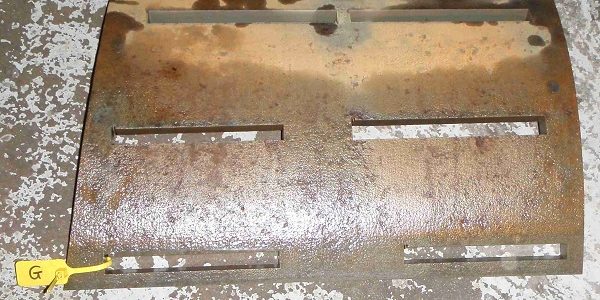

six samples waterjetcut from the wall of a cast irion pipe section

On some pipe sections we took samples from marked locations as the sections marked were of interest either from extreme pitting or localized blemishes.
The pipe sections were on average 500mm long 355mm diameter and the wall was approximately 19mm thick.

We needed to waterjet cut a large number of test coupons from a variety of locations around the cast iron pipe samples and then machine them on a milling machine and turning them on a lathe to make them into tensile and fracture toughness specimen coupons.

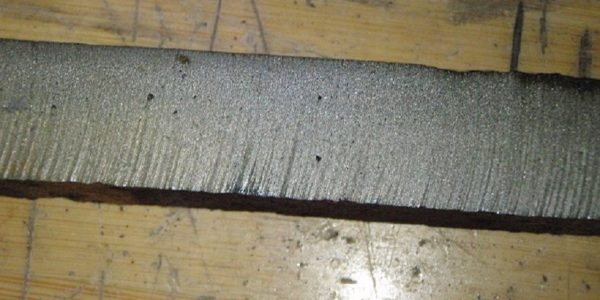

cast iron pipe section waterjet cut edge showing some flaws

This is a close up of a waterjet cut edge on the sample section, at this stage the quality of the waterjet cutting was irrelevant as they were to be fully machined, so we could turn the speed up on the waterjet to get them cut out.

On this sample you can see some small flaws in the cast iron.

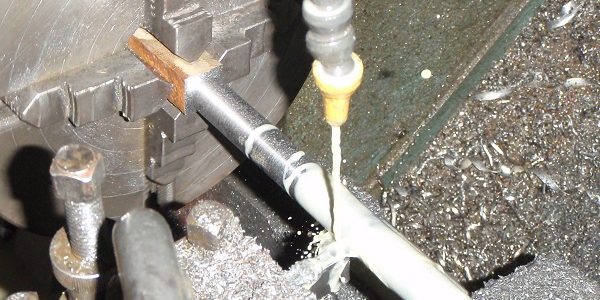

machining cast iron Pipe sections into dumbells on the lathe

Due to the final shape and varying thicknesses of the waterjet cut cast iron pipe coupon sample section we set the end being turned on the lathe in a independent 4 jaw chuck and turned with a tail stock center.
we programmed the dog bone specimen shape on the cnc lathe.

machined dumbell test specimens showing flaw

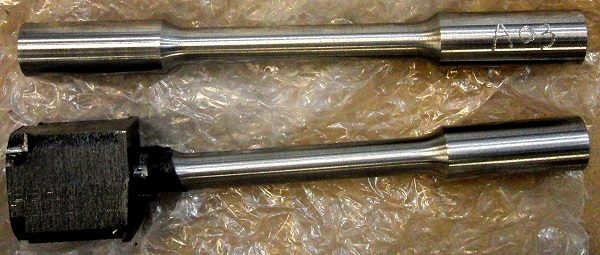

shown here is a finished sample on the top with an engraved code so the pipe and location in the pipe it came from was recorded.

On the bottom is a specimen that was being machined which had a bad flaw in it so it was stopped and rejected from machining but kept for inspection in the lab.

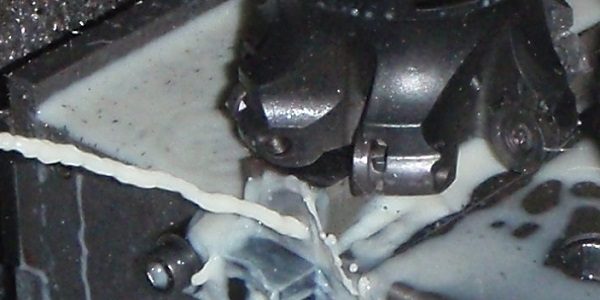

machining flat in the milling machine

For the square coupon specimens we machined them on the milling machine on all four sides,

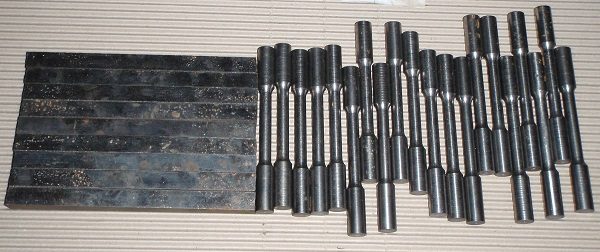

set of dumbel machined from cast iron water pipe

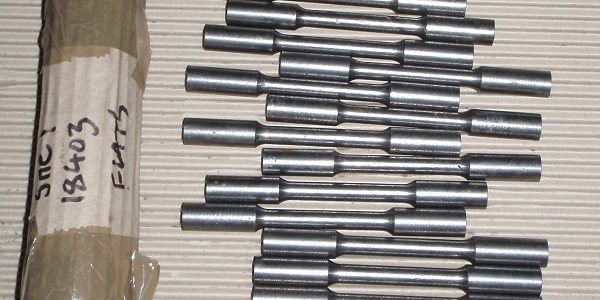

In these two photos are two batches of dumbbell coupon samples taken from two sections of half a pipe.
From each half pipe section we got 20 dumbbell specimens and 9 square coupons.

They were waterjet cut, machined, marked and packed ready for the Lab.

machined specimens both square and round dumbells
