Steel Gasket precision waterjet cut for an old engine case

This old engine case is from an old collectors car and our customer specialises in re-manufacture parts and restoration of these old vehicles. They wanted a master gasket water jet cut from 1.5mm thick steel sheet. We only had the old engine case to work from. Using our photogrammetry digistising process we were able to get the data we needed to be able to create the cad pattern for waterjet cutting.

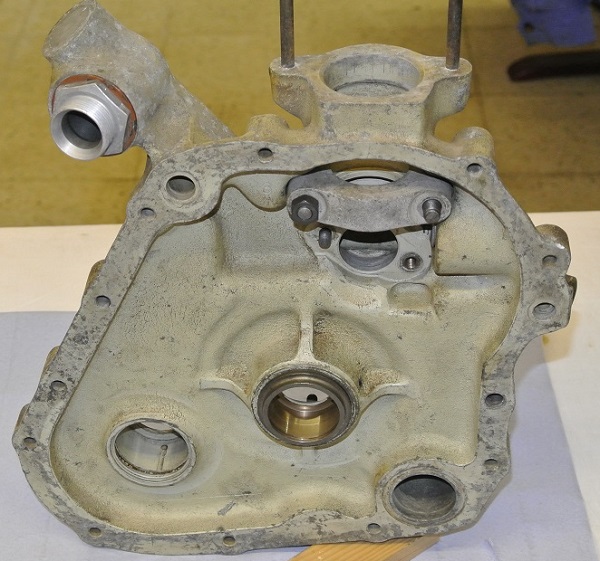

Gasket master for an old engine case

The engine case had various e protrusions and holes at different heights which made it more challenging to get the digital data needed for the cad pattern so we could water jet cut the steel gasket.

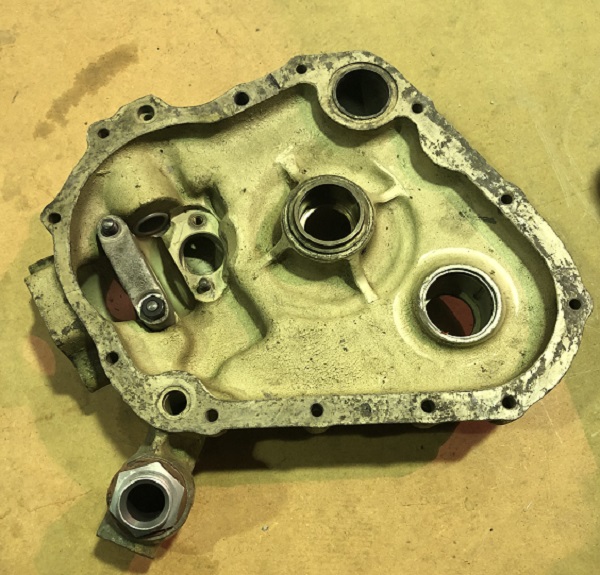

engine case ready for digitising

We set it up on the bench and placed coded targets around the engine case and on various key levels / points.

This allows us to pick up the points in our photogrammetry digitising software.

digitsie engine case with photogrammetry

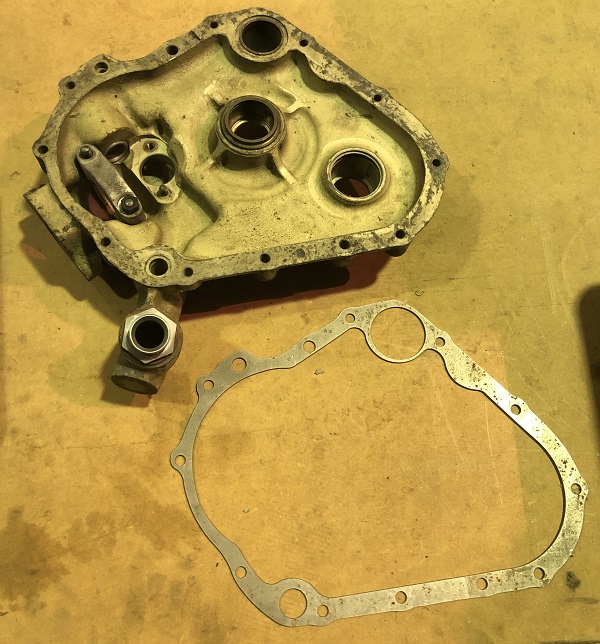

The finished Steel master gasket water jet cut from 1.5mm thick steel sheet is shown here on the bench next to the old Engine case

the finished waterjet cut steel gasket

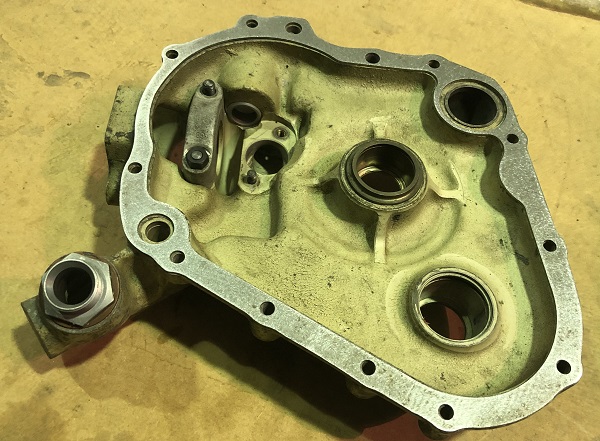

Steel gasket fittd to the old engine case after waterjet cutting
